Name: Scanreco® RC400 G2B Maxi system
Brand: Scanreco®/Palfinger®
SKU: woocommerce_gpf_10478
Availability: InStock

Scanreco® RC400 G2B Maxi system

Scanreco® RC400 G2B Maxi system
Original spare part

Transmitter: 6 Linear joysticks, 5 function switches
Receiver

If your choice is not listed here, request a personalized quote (via quote button) or create your own system (via create your own button). You will receive a personalized quote as soon as possible.

For transmitter: Scanreco® RC400 G2B Maxi

Price on request

Weight	5,0 kg
Brands	Scanreco®/Palfinger®
Remote control type	Cable control, Wireless control
Controller type	Joystick, Other
Complete systems	Complete system
Number of joysticks	6, Other
Frequency	434 MHz (frequency block)
Joystick type	Linear, Other
Stop Button	With Stop Button
Voltage	VDC
Battery technology	Ni-Mh
Country of Origin (CO)	Sweden
HS code	8526920090

Scanreco® RC400 G2B Maxi system
Orginal spare part

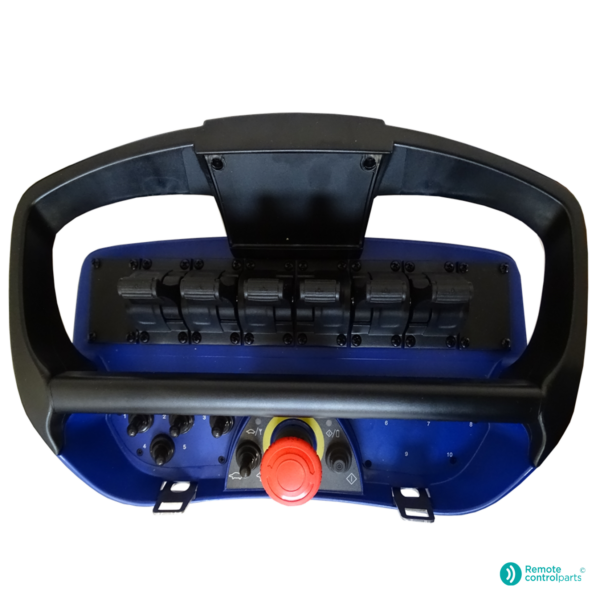

Scanreco® transmitter RC400 G2B maxi:
6 levers
Stop function in accordance with EN ISO 13849-1 cat. 3, PL e
Operational time: approx. 10 hours on a single charge
Frequency band: 433-434
Operating range > 100m (open field)
Cable control: Standard length 10 meters
Protection category: IP65
Dimensions: (W x H x D): 350 x 160 x 190 mm

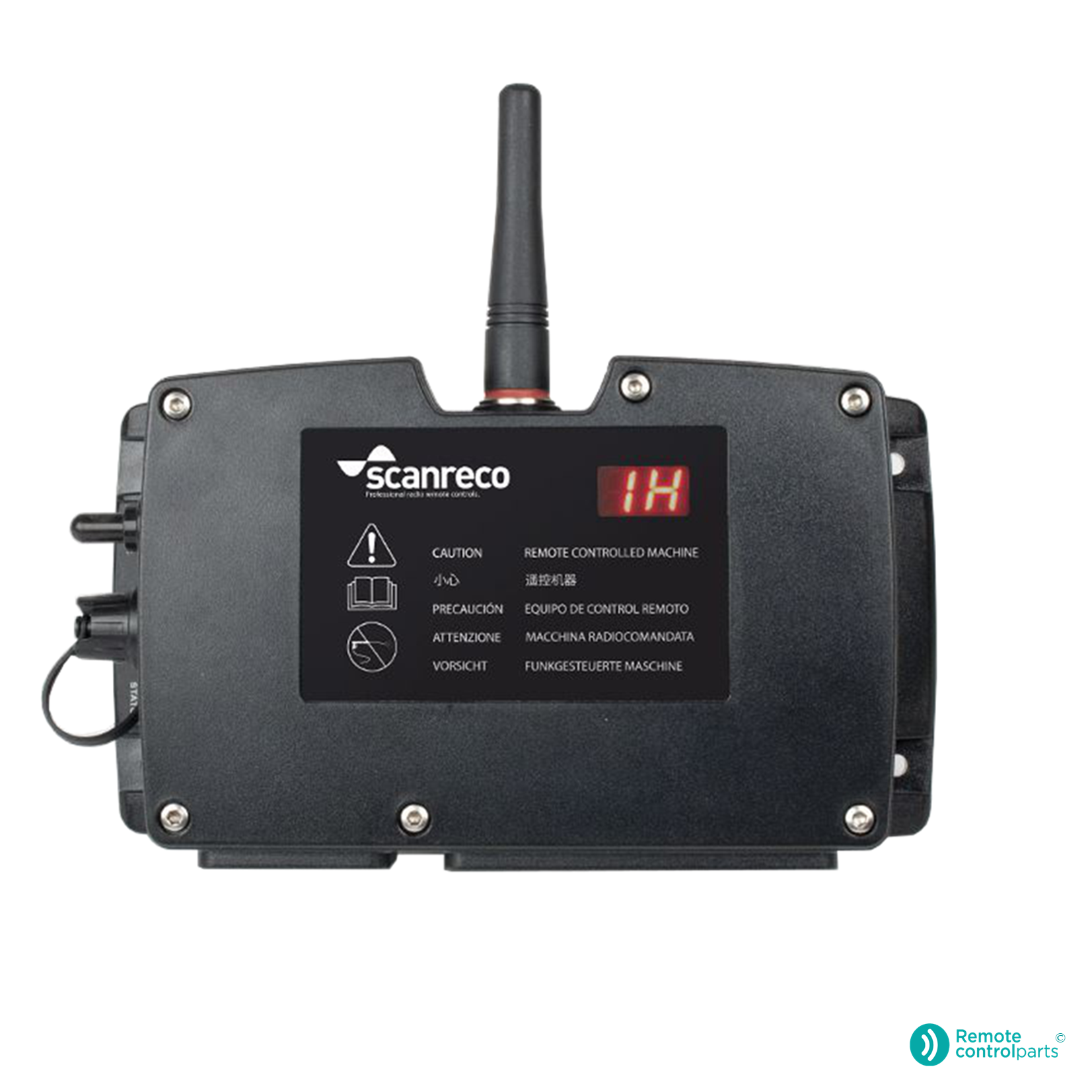

Scanreco® receiver RC400:
6 proportional outputs
14 digital outputs (including dump valve)
Stop function in accordance with EN ISO 13849-1 cat. 3, PL e
Frequency bands: 433-434
Cable control: Standard length 10 meters
Supply voltage: 12/24 VDC
Protection category: IP 65
Dimensions (W x H x D): 233 x 205 x 77 mm (height incl. antenna)
Weight: 1.2 kg

Scanreco® battery charger type 434:
battery charger
Input: 10-35 VDC

Scanreco® batteries:
2 batteries, 7.2V, 2000 mAh, Ni-Mh

Additional:
Neck strap
User manual
Wiring diagram
External antenna
Serial cable (10 meters)

If your choice is not available, please request a personalized quote. You can press the quote button. In the application form, please fill in your personal information, and your personal wishes. You will receive a personalized quote as soon as possible.

Different wiring looms (proportional and digital) are available. See below an overview of the different wiring looms (proportional and digital).
Proportional wiring loom:
– Scanreco® cable kit Hirschmann 1-8 Danfoss, 47961
– Scanreco® cable kit for AMP-JPT 1-8 Danfoss, 47753
– Scanreco® cable kit for Bosch JPT 1a-6b PWM G2B / G4, 48238

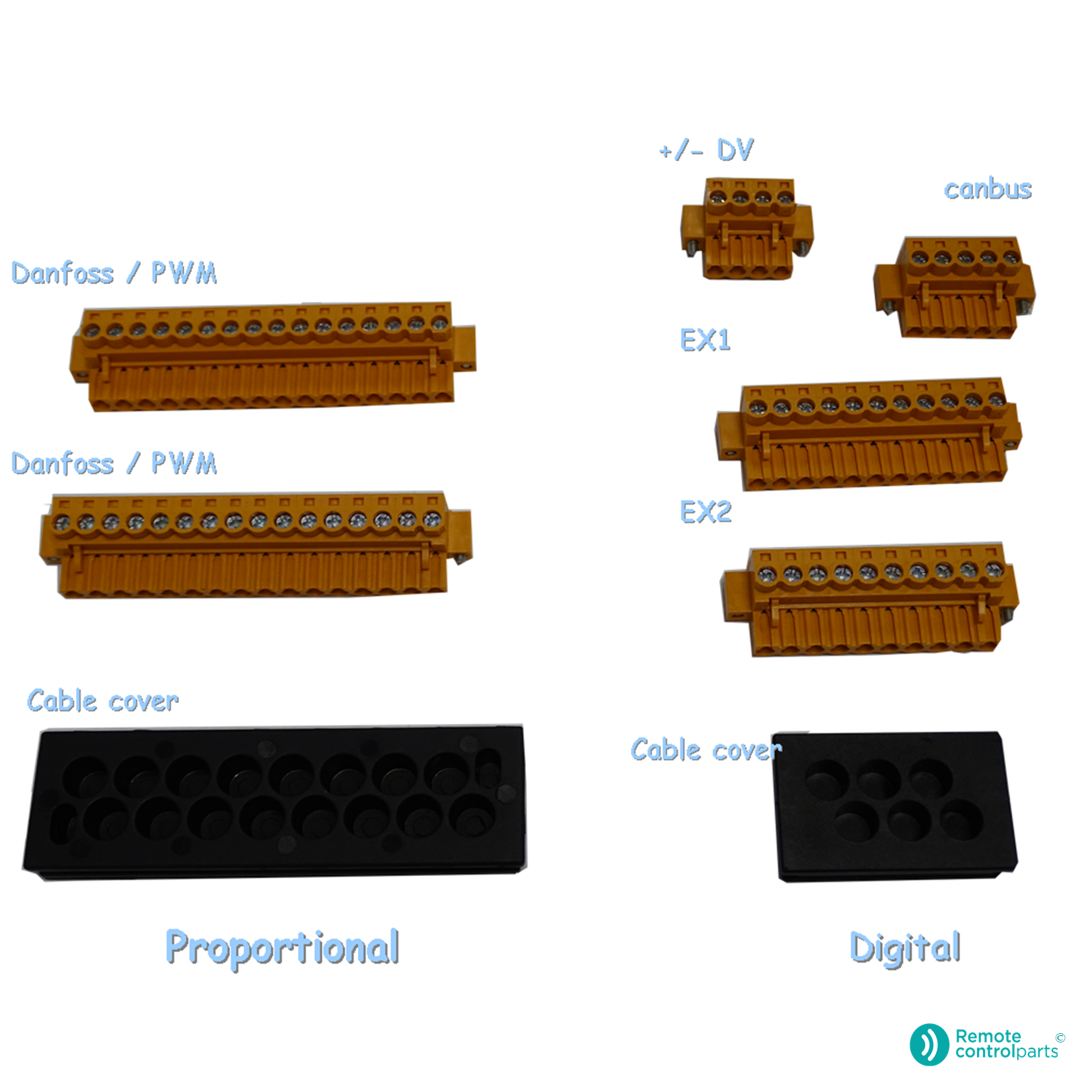

– Scanreco® cable plug set, 47790
Digital wiring loom:
– Scanreco® cable kit +/- DV, EX1, EX2 for G2B, 47752
– Scanreco® Cable Kit CU +/-, EX1 G4/P4, 49428
– Scanreco® cable plug set, 47790
