Name: Juuko® K202 system
Brand: Juuko®
SKU: 10659
Availability: InStock

Juuko® K202 system

Juuko® K202 system
Original spare part

Juuko® transmitter K202, 2 push buttons, start button, stop button
Juuko® receiver HS-K202
Juuko® Q1, wireless charger (suitable for K-series transmitters from 2016, recognizable by a green border “wireless charger” on the back.

For transmitter: Juuko® K202

From € 655,11

per piece

excl. VAT

From € 792,68 incl. VAT

Wireless Controllers:

Clear

Weight	N/A
Brands	Juuko®
Remote control type	Wireless control
Complete systems	Complete system
Controller type	Push Button
Frequency	434 MHz (frequency block)
Stop Button	With Stop Button
Number of push buttons	2
Battery technology	AA rechargeable
Voltage	VAC, VDC
Country of Origin (CO)	Taiwan
HS code	8526920090

Juuko® K202 system
Original spare part

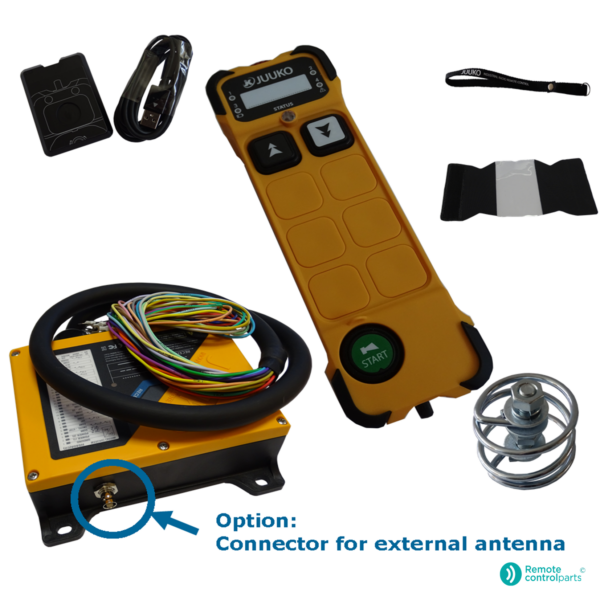

Click on options for the correct wireless controllers. The following versions are available:
– Juuko® K202 complete system, with internal antenna
– Juuko® K202 complete system, with BNC external antenna connector (exclusive antenna). Click on BNC antenna with cable to add the antenna.

Juuko® transmitter K202:
2 push buttons with second step
Start button
Stop button
Frequency: 433.075/434.900 MHz
IP65 class
Range: 100 meters
Use Temperature: -10 ° C to 65 ° C
Power supply: 2 x AA rechargable batteries
Dimensions: 230 mm x 57 mm x 51 mm (LxWxD)

Juuko® receiver HM:
Frequenty: 433.075/434.900 MHz
IP65 class
Power supply: 24-264 VAC/DC
Use Temperature: -10°C tot 65°C
Dimensions: 272 mm x 260 mm x 96 mm (LxWxD)
Optional: 12 VDC receiver power supply

Juuko® wireless charger Q1
USB to wireless charger
Suitable for all K-series from 2016, the suitable transmitters are identified by a green border “wireless charger” at the rear. The K-series transmitter manufactured before 2016 doesn’t have a “wireless charger” option.

Other:
Protective cover
Hand strap
User manual
Wiring diagram
Optional: external antenna
