Name: IRIS hand transmitter TX1 SMD system, 12V
Brand: TRL®/SMD®
SKU: 10440
Availability: InStock

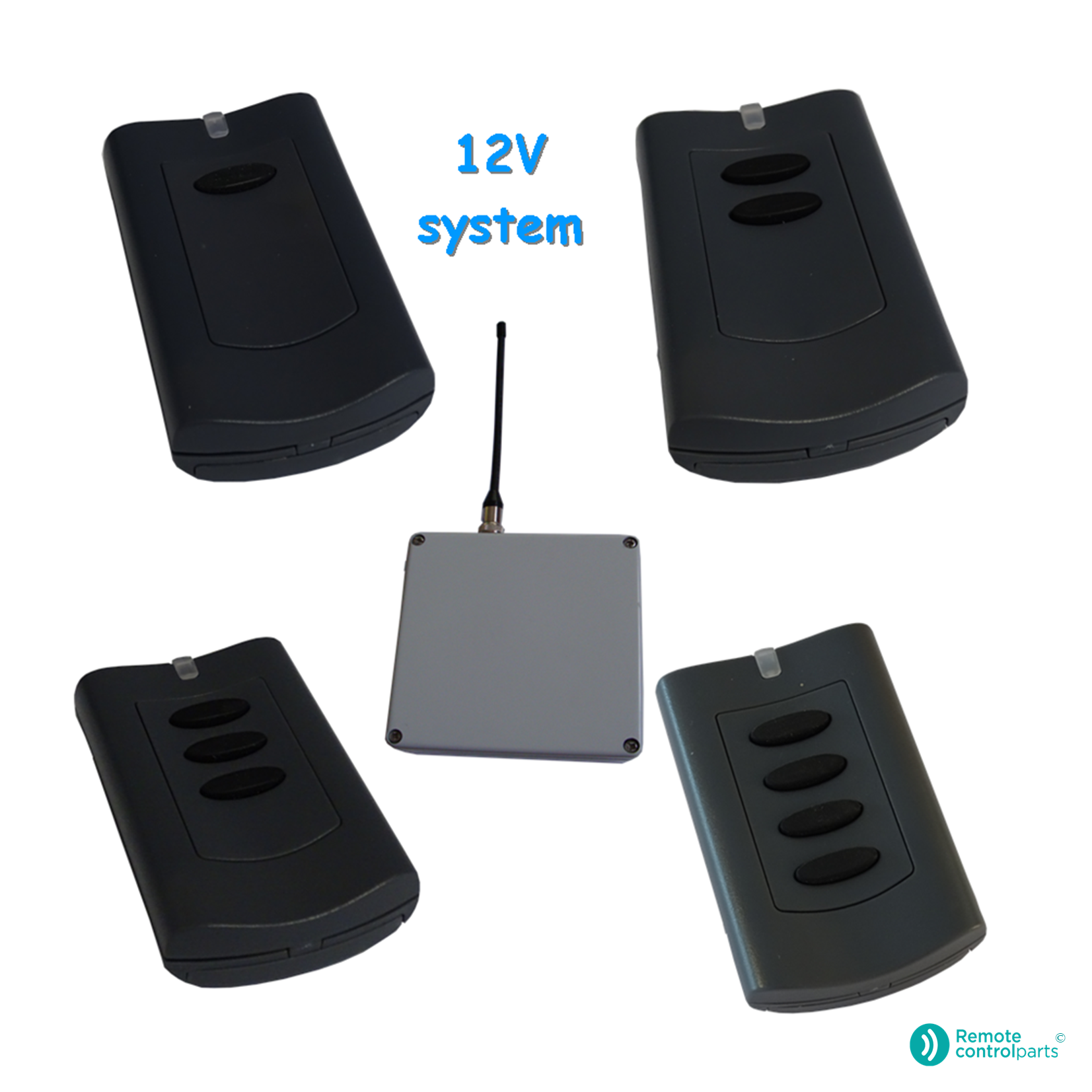

IRIS hand transmitter TX1 SMD system, 12V

IRIS hand transmitter TX1 SMD system, 12V
Original spare part

IRIS hand transmitter TX1 SMD
SMD industrial receiver
SMD industrial antenna

For transmitter: SMD IRIS TX1

From € 390,09

per piece

excl. VAT

From € 472,01 incl. VAT

SMD IRIS hand transmitter TX1:

Clear

Weight	0,500 kg
Brands	TRL®/SMD®
Remote control type	Wireless control
Complete systems	Complete system
Controller type	Push Button
Number of push buttons	2, 4, Other
Battery technology	3V (CR2032)
Frequency	434 MHz (frequency block)
Stop Button	Without Stop Button
Voltage	VDC
Country of Origin (CO)	Italy
HS code	8526920090

IRIS hand transmitter TX1 SMD system, 12V
Original spare part

IRIS hand transmitter TX1 SMD
– 433 MHz
– Range approx. 100 meters
– Complies with the R&TTE directive 99/5/EC
– Transmitter has a unique code, this is linked to the “SMD receiver by means of a “multi-code”. The receivers are available in different versions.
– Available in different versions. (1, 2, 3 and 4 function buttons)
– Power supply: 2 x 3V battery (CR2032)
– Dimensions: 85 mm x 52 mm x 20 mm

SMD industrial receiver
– Receiver with 1, 2, 3 or 4 relays possible
– Power supply: 12 VDC
– Dimensions receiver 1 to 4: 120 mm x 120 mm x 55 mm

SMD industrial antenna
– BNC antenna 433 MHz, standard
– Antenna with longer range on request.
